Description

About this item

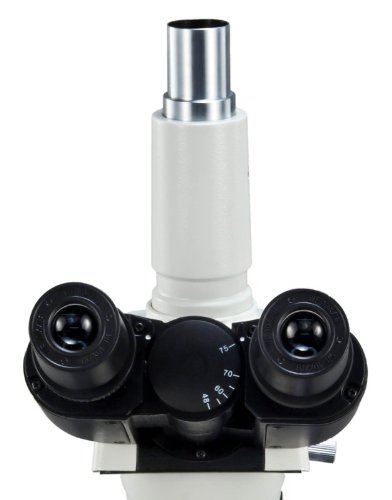

Total magnification: 40X-80X-100X-200X-400X-800X-1000X-2000X; Eyepieces: wide field WF10X/18 and WF20X; Objective: achromatic DIN 4X, 10X, 40X (spring),100X (spring, oil); Head: 30 degrees inclined 360 degreesrotatable trinocular Siedentopf; Interpupillary: hinge adjustment 48mm - 75mm; Diopter: adjustable on left eyepiece tube

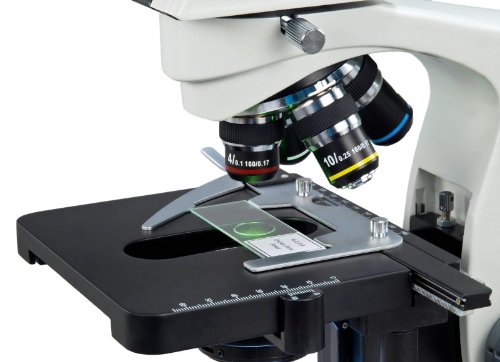

Nosepiece: revolving, quadruple, reversed; Stage: X-Y mechanical stage with scales, range 78mm x 40mm, dimension 110mm x 140mm; Focus: coaxial coarse and fine focus knobs on both sides, rack and pinion adjustment, with tension control and stop

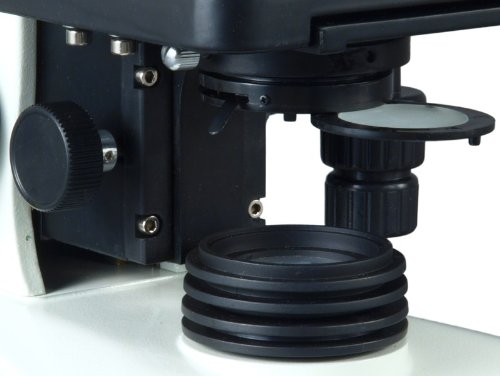

Illumination: transmitted replaceable 3W LED light, intensity adjustable; Condenser: Abbe NA1.25 with iris aperture diaphragm and filter holder, rack and pinion adjustment; Power supply: AC 100V ~240V 50/60Hz (US and Canada plug)
Digital camera: - true color 3488 x 2616 pixels (9.0MP) - 0.45X reduction lens to get larger field of view - Software compatible with Windows XP/Vista/7/8/10 - Capturing microscope images, recording live video, measuring lengths, angles, areas, editing images - USB cable included
5-year warranty against manufacturing defects

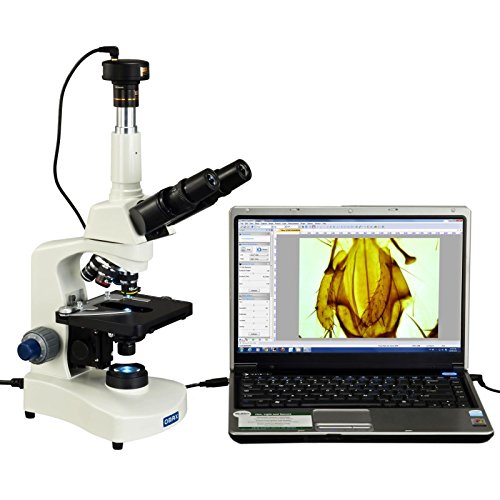

This is a professional grade trinocular microscope with 9MP high quality digital camera. It features reversed nosepiece, 3W LED bright illumination (brighter than 30W halogen light) and everything an advanced microscope have. It has the par-focal (also called simul-focal) function which means the image is focused through both eyepieces and the photo tube and no view switching is needed. The camera comes with advanced software that can make measurement of the samples and color, brightness, white balance and other settings are available. It can also take video clips for live samples through the fast USB2.0 port to share with others. This digital compound microscope is ideal for professionals and also affordable for students.
